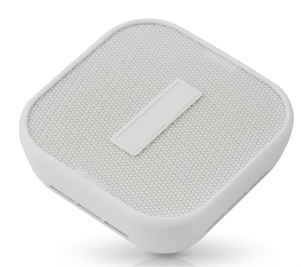

ENVIRONMENTAL MONITOR (ISL EM1050)



The ISL EM1050 Environmental Monitor is designed for monitoring indoor environmental conditions. It measures a range of conditions including noise level, temperature, humidity, atmospheric pressure, illumination, CO, CO₂, and TVOC concentrations.



The device may be used wherever there is a need to diagnose air quality and environmental conditions in a room, leading to options for their improvement.
The device is mains powered and is suitable for easy installation on a ceiling or wall.
Sensors measuring CO and CO₂ concentrations are pre-calibrated at the production stage. The CO and CO₂ sensors do not react to other gases in the environment.

  • Includes sensors for noise level, temperature, humidity, atmospheric pressure, illumination, CO, CO₂, and TVOC (total volatile organic compounds)

  • Sensors measuring CO and CO₂ concentration pre-calibrated at production stage
  • CO and CO₂ sensors do not react to other gases in the vicinity
  • Aesthetic, non-invasive enclosure
  • Easily mounted on ceilings or walls
  • Mains powered
  • Low energy consumption
  • Equipped with an RGB diode, indicating operating status of the device
ISLEM-1050_TVOC_Monitor

KEY FEATURES



battery (1)

LONG BATTERY LIFE

Our sensors have been designed to have a battery life of up to 10 years, so you don't have to worry about changing them frequently.

bell (1)

PROACTIVE ALARM SYSTEM

Pro-active alerts ensure that your team can prevent any critical level breaches.

patient

PROVEN PARTNER

Invisible Systems are trusted by clients in both the public and private sectors. You can rely on us to deliver an outstanding level of service.

website (1)

PERSONALISED DASHBOARDS

Our online monitoring software, Realtime Online is set-up to meet the specific needs of your organisation.

two-settings-cogwheels (3)

SIMPLE SET-UP

Our sensors are easy to set up and do not require integration with your existing IT infrastructure.

notes

LOWER COSTS

Choosing wireless sensors and a cloud platform enables you to reduce your installation and maintenance costs.

ADDITIONAL INFORMATION



CONFIGURABLE THRESHOLDS

Configurable high/low thresholds allow different transmit intervals when thresholds are crossed providing advanced edge intelligence to the network, and enable alarms to be generated by Realtime-Online™.


REAL-TIME MONITORING

Data from every sensor in your network is reported back through Invisible Systems Big Data architecture either to our Monitoring and Analytics platform Realtime-Online™, or to a partner cloud platform via our API, ensuring that your data is visible, actionable and valuable to your organisation.


LORAWAN

The ISLEM1050 is a LoRaWAN certified device and Invisible Systems are members of the LoRa alliance. It offers both ABP and OTAA activation options and is designed to work with all LoRaWAN gateways and network servers.

TECHNICAL DATA



COMMS

Frequency: EU868, Other regions available on request

Activation: ABP or OTAA

Tx Power: LoRa EU868: to +14dBm, LoRa US915, AU915, AS923: to +22dBm Bluetooth LE for configuration: -20 to +6dBm

ENVIRONMENTAL

Dimensions: 40x136x136mm

Enclosure colour: White

Mounting method: Screw

Enclosure material: Nylon

Level of protection: IP20

Power: Mains supply 100–240 VAC 50/60 Hz

CO2

Measuring range: 0ppm to 1000ppm

Recommended working conditions: -20°C to 40°C, 15%RH to 95%RH

Measurement repeatability: < ±2%

Calibration: Pre-calibrated at production stage

ATMOSPHERIC PRESSURE

Measuring range: 300hPa to 1100hPa

Absolute accuracy: ±1hPa (temperature 0°C to 40°C, atmospheric pressure 950hPa to 1050hPa)

Recommended working conditions: -40°C to 85°C

TEMPERATURE



Measuring range: -40°C to +125°C

Accuracy: ±0.3°C (between -40°C to 90°C)

RELATIVE HUMIDITY



Measuring range: 0%RH to 100%RH

Accuracy: ±2

ILLUMINANCE



Measuring range: 0.01lx to 83klx

Recommended working conditions: -40°C to 85°C

Accuracy: 10% (temperature 25°C, ~2klx)



NOISE LEVEL



Measuring range: 30 to 120dB SPL

Optimal operating temperature: 40°C to 100°C

Frequency range: 100Hz to 10kHz

Sensitivity: 22dB

SNR: 59dB



VOLATILE ORGANIC COMPOUNDS (TVOC)



Measuring range: 0ppb to 60000ppb Approx. 0-270 mg/m3 (the conversion assumes a molecular mass of the TVOC reference gas mix-ture equal to 111.86g/mol, 25°C temperature and 1.013 bar pressure)

Accuracy: ±15%

Calibration: Pre-calibrated
