LORAWAN INDOOR GATEWAY



The Invisible Systems LoRaWAN Indoor Gateway is the ideal gateway to support your smart city or smart building project, or any project that requires dedicated indoor coverage and/or network densification, providing both a unique superior coverage and operational excellence with 3G/4G backhaul.

  • Indoor LoRaWAN® Gateway

  • Ingress protection (IP30)
  • Supported unlicensed bands: 863-874.4MHz (EMEA, India), 902-928MHz (North America), 915-928MHz (APAC, Latin America)
  • Supported LoRaWAN® regional parameters: EU863-870, IN865-867, RU864-870, US902-928, AU915-928, AS923, KR920-923
  • 8ch RX (125 kHz, multi Spreading Factor) + 1ch RX (250KHz or 500kHz, mono Spreading Factor) + 1ch RX (FSK) to get 10ch RX + 1ch TX
  • Backhaul connectivity: 4G Worldwide module with 3G/2G fallback and Ethernet (RJ45)
  • • Powered by:
    • AC/DC power supply (90-264VAC/12VDC) with 5.5x2.5mm plug
    • 5V DC supply via USB-C
    • Uninterrupted power supply with 5h or 24h autonomy (accessories)
  • Highly secure device relying on hardware secure core

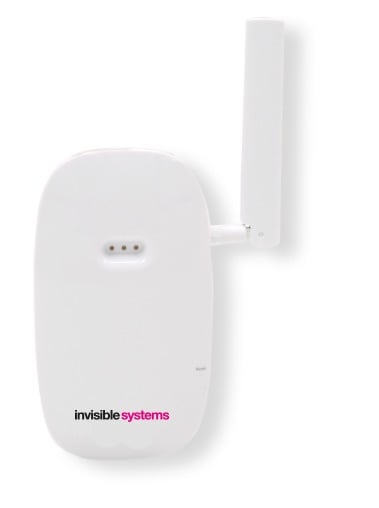

LoRaWAN_Indoor_Gateway

KEY FEATURES



battery (1)

LONG BATTERY LIFE

Our sensors have been designed to have a battery life of up to 10 years, so you don't have to worry about changing them frequently.

bell (1)

PROACTIVE ALARM SYSTEM

Pro-active alerts ensure that your team can prevent any critical level breaches.

patient

PROVEN PARTNER

Invisible Systems are trusted by clients in both the public and private sectors. You can rely on us to deliver an outstanding level of service.

website (1)

PERSONALISED DASHBOARDS

Our online monitoring software, Realtime Online is set-up to meet the specific needs of your organisation.

two-settings-cogwheels (3)

SIMPLE SET-UP

Our sensors are easy to set up and do not require integration with your existing IT infrastructure.

notes

LOWER COSTS

Choosing wireless sensors and a cloud platform enables you to reduce your installation and maintenance costs.

ADDITIONAL INFORMATION



CONFIGURABLE THRESHOLDS

Configurable high/low thresholds allow different transmit intervals when thresholds are crossed providing advanced edge intelligence to the network, and enable alarms to be generated by Realtime-Online™.


REAL-TIME MONITORING

Data from every sensor in your network is reported back through Invisible Systems Big Data architecture either to our Monitoring and Analytics platform Realtime-Online™, or to a partner cloud platform via our API, ensuring that your data is visible, actionable and valuable to your organisation.


LORAWAN

The Indoor Gateway is a LoRaWAN certified device and Invisible Systems are members of the LoRa alliance. It offers both ABP and OTAA activation options and is designed to work with all LoRaWAN gateways and network servers.

TECHNICAL DATA



ENVIRONMENTAL

RX Sensitivity: -140 dBm (SF12)

TX Conducted Power: Configurable from 5dBm to 24dBm

Maximum TX EIRP: 27 dBm, LoRa® swivel antenna, 3 dBi peak gain

Antennas: Integrated LTE antenna, SMA or RP-SMA for LoRa® antenna

Temperature Range: -20°C +55°C (for gateway only, without power supply)

Humidity Range: 5%RH to 95%RH

Dimensions: 160 x 90 x 35 mm

Weight: 163g

Casing: IP30

CPU: ARM Cortex A9

Secure Boot: Signed firmware

Secure Storage: Keys and certificates in secured area, using ProvenCore™ solution

Reboot: Reboot (watchdog) and recovery to previous Management config (or factory config if the boot issue is not fixed)

Backhaul: Secured via MQTTS and IPsec, with OpenVPN remote connections
