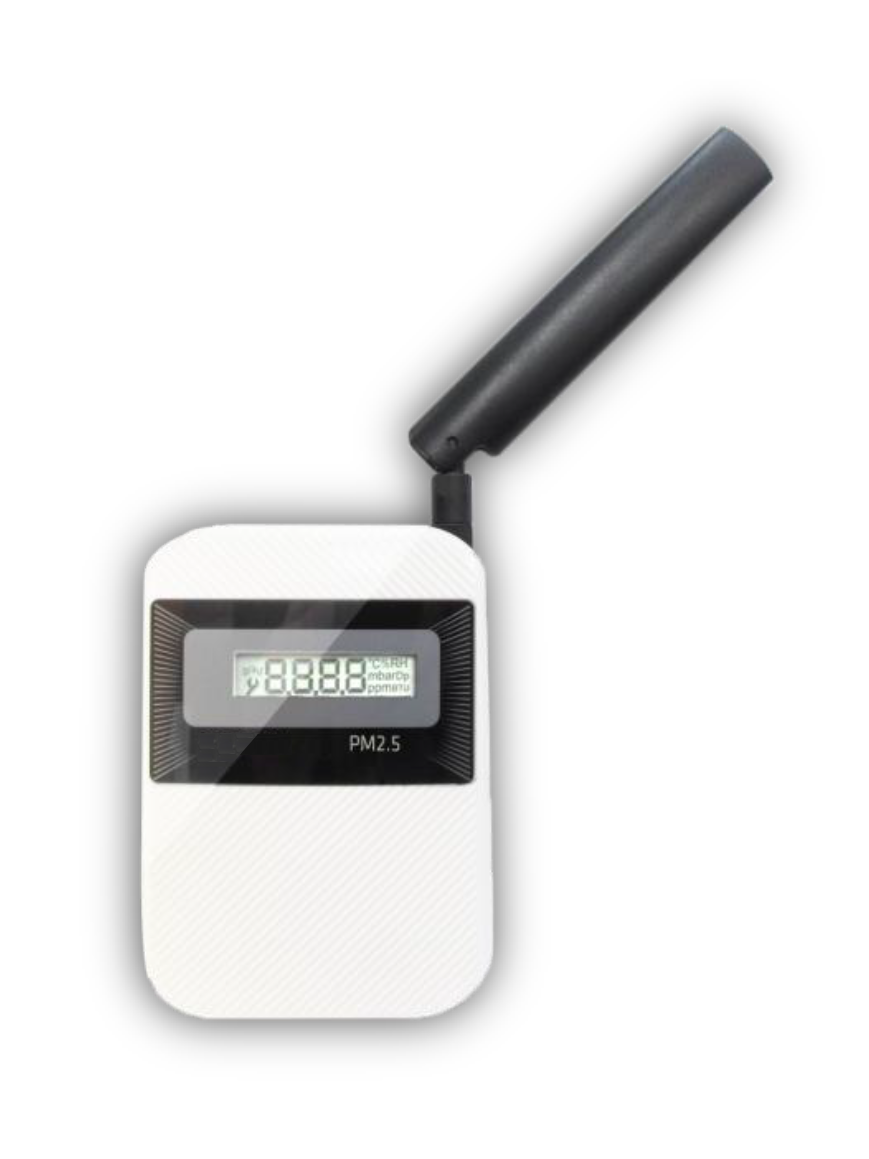

PM2.5, TEMPERATURE & HUMIDITY (ISL EM1000)



The ISL EM1000 PM2.5, Temperature & Humidity transmitter is designed to measure particulate matter, temperature and humidity.



The ISL EM1000 PM2.5, Temperature & Humidity uses a calibrated laser dust (PM2.5) sensor and a compensated temperature/humidity sensor. It is ideal for detecting dust in air, with applications in air purification, air conditioning and work environment air quality monitoring.

  • Calibrated dust particle sensor

  • Integrated compensated temperature & humidity sensor

  • Wide range DC power-in (8 – 12VDC) or Micro-USB DC power-in (5VDC)

  • LCD display, with PM2.5 concentration, temperature & humidity

  • Alarm LED indicator

ISLEM1000-PM2

KEY FEATURES



battery (1)

LONG BATTERY LIFE

Our sensors have been designed to have a battery life of up to 10 years, so you don't have to worry about changing them frequently.

bell (1)

PROACTIVE ALARM SYSTEM

Pro-active alerts ensure that your team can prevent any critical level breaches.

patient

PROVEN PARTNER

Invisible Systems are trusted by clients in both the public and private sectors. You can rely on us to deliver an outstanding level of service.

website (1)

PERSONALISED DASHBOARDS

Our online monitoring software, Realtime Online is set-up to meet the specific needs of your organisation.

two-settings-cogwheels (3)

SIMPLE SET-UP

Our sensors are easy to set up and do not require integration with your existing IT infrastructure.

notes

LOWER COSTS

Choosing wireless sensors and a cloud platform enables you to reduce your installation and maintenance costs.

ADDITIONAL INFORMATION



CONFIGURABLE THRESHOLDS

Configurable high/low thresholds allow different transmit intervals when thresholds are crossed providing advanced edge intelligence to the network, and enable alarms to be generated by Realtime-Online™.


REAL-TIME MONITORING

Data from every sensor in your network is reported back through Invisible Systems Big Data architecture either to our Monitoring and Analytics platform Realtime-Online™, or to a partner cloud platform via our API, ensuring that your data is visible, actionable and valuable to your organisation.


LORAWAN

The ISLEM1000 is a LoRaWAN certified device and Invisible Systems are members of the LoRa alliance. It offers both ABP and OTAA activation options and is designed to work with all LoRaWAN gateways and network servers.

TECHNICAL DATA



COMMS

Frequency/Band (LoRa): EU 863 ~ 870 MHz US 902 ~ 928 MHz ROA 920 ~ 928 MHz

Tx Power: Up to 100mW

Expected range (line of sight): Up to 18km

Sensitivity: -132 dBm @ 980 bps

Antenna: External RPSMA antenna

ENVIRONMENTAL

Dimensions (mm): 117.3x84.1x28.1 ± 0.1 mm

Installation: Wall mount

Enclosure material: PC

Weight: 132g

Power supply: Wide range DC power-in (8 – 12VDC) or Micro-USB DC power-in (5VDC)

Storage temperature range: -10°C to +60°C

Operating temperature range: -10°C to +60°C

Operating humidity range: 0 - 95%RH, non-condensing

Warm-up time: ≤ 1 minute (at full specs ≤ 15 minutes)

LED indicator: Red LED x 2 (by threshold setting, defaults are 35 µg/m3 and 55 µg/m3)

SENSING ELEMENT

Dust: Laser light scattering

Temperature & humidity: CMOS sensor

RESPONSE TIME

Dust: M< 10 seconds

Temperature: Min 3 seconds Max 30 seconds

Humidity: < 8 seconds

ACCURACY (at 25°C)



Dust: 1 μg/m3

Temperature: ±0.5°C

Humidity: ±5 %RH

REPEATABILITY



Dust: ±10 % @ 100 – 500 μg/m3, ±10 μg/m3 @ 0 – 100 μg/m3

Temperature: ±0.3°C

Humidity: ±0.3 %RH



ZERO DRIFT



Temperature: < 0.04°C/yr

Humidity: < 0.5 %RH/yr



MEASUREMENT RANGE



Dust: 0-500 μg/m3

Temperature: -10°C to +60°C

Humidity: 0 - 95%RH



Download Datasheet
