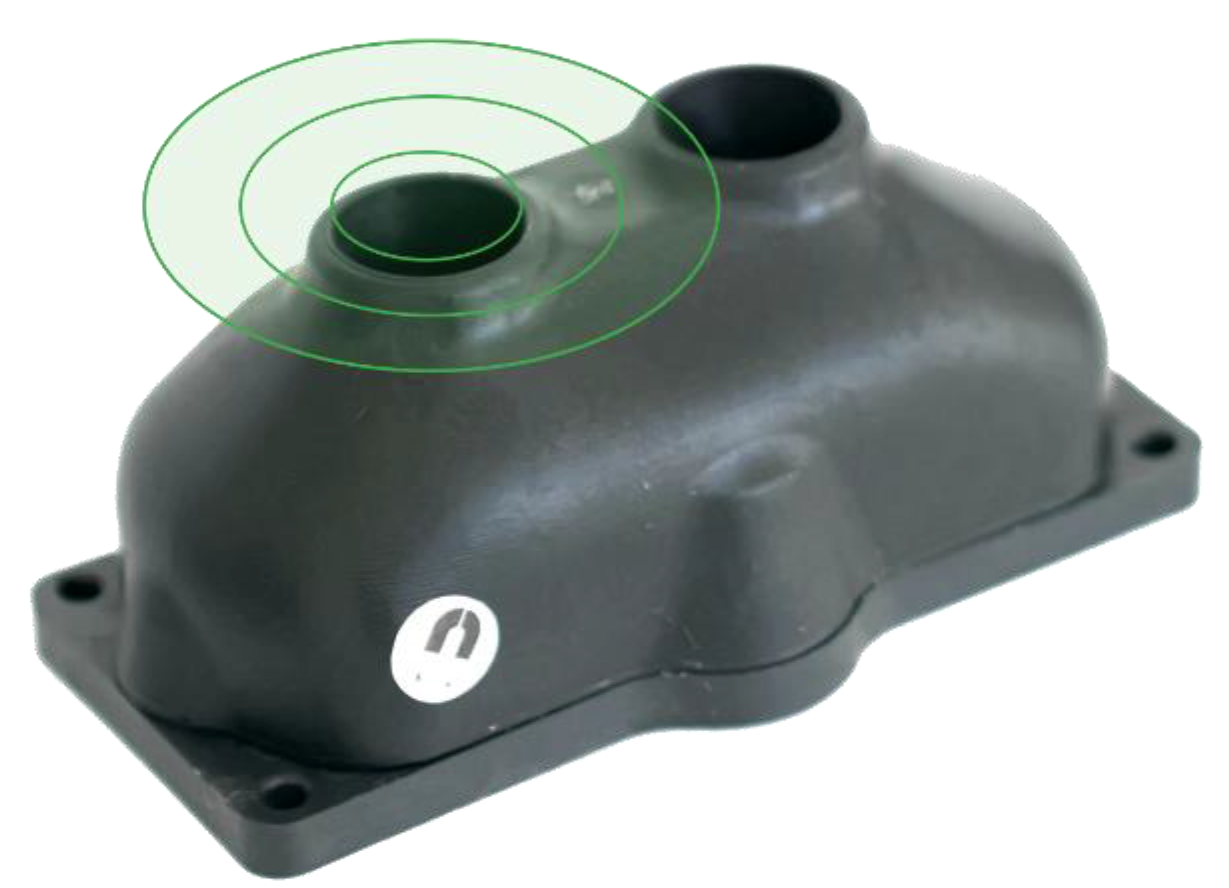

BIN FILL LEVEL SENSOR (SINGLE) (ISL LM1200)
The ISL LM1200 Bin Fill Level Sensor (Single) is an enterprise class device for monitoring the fill-level of various types of containers. It uses a single ultrasonic beam to measure depths of up to 170cm.
The ISL LM1200 Bin Fill Level Sensor can monitor any type of waste (including mixed waste, paper, plastics, glass, clothing, bio-waste, liquids, electronics, and metal) in bins and containers of various types and sizes.
The sensor includes a configurable accelerometer for tilt recognition, as well as a temperature sensor to detect fires. The device can send notifications immediately in the event of either occurring.
The sensor is powered by replaceable batteries.
Replaceable batteries with a lifespan of several years
- Ultrasonic measurement
- Works with any waste type, including mixed waste, paper, plastics, glass, clothing, bio-waste, liquids, electronics, and metal
- Includes temperature measurement for detecting fires
- Includes tilt measurement and alarm
- BLE technology for reading device during installation
- Measurement depths up to 170cm
LONG BATTERY LIFE
Our sensors have been designed to have a battery life of up to 10 years, so you don't have to worry about changing them frequently.
PROACTIVE ALARM SYSTEM
Pro-active alerts ensure that your team can prevent any critical level breaches.
Invisible Systems are trusted by clients in both the public and private sectors. You can rely on us to deliver an outstanding level of service.
Our online monitoring software, Realtime Online is set-up to meet the specific needs of your organisation.
Our sensors are easy to set up and do not require integration with your existing IT infrastructure.
Choosing wireless sensors and a cloud platform enables you to reduce your installation and maintenance costs.
CONFIGURABLE THRESHOLDSConfigurable high/low thresholds allow different transmit intervals when thresholds are crossed providing advanced edge intelligence to the network, and enable alarms to be generated by Realtime-Online™.
The ISL LM1200 is a LoRaWAN certified device and Invisible Systems are members of the LoRa alliance. It offers both ABP and OTAA activation options and is designed to work with all LoRaWAN gateways and network servers.
Frequencies: EU 863 - 870MHz
Adaptive Data Rate: Yes
Weight (including batteries): 215g
Material: Recyclable, polyamide with glass fibres
Mounting options: Screws / Clench / Rails
Battery voltage & capacity: 3.6V, 2600 mAh
Battery type: Lithium-thionyl chloride – Li-SOCl2
Battery life: Up to 7 years, Depends on local temperature, type and position of the bin and frequency of measurement
Replaceable batteries: Yes
Operating temperature range: -30°C to + 80°C
Operating humidity range: 0-100%RH
Turn on mechanism: Magnetic
Configuration: Mobile app via BLE
Measurement: Single ultrasonic beam
Beam angle: 30°
Measuring range: 3 – 170cm
Measurement calculation: Multi measurement with weight approximation
Temperature measurement: Yes
Fire alarm: Yes
Overturn measurement: Accelerometer, Advanced tilt recognition algorithm
Measurement times: Every 2 hours
